30 x 10 ft. Modco 16

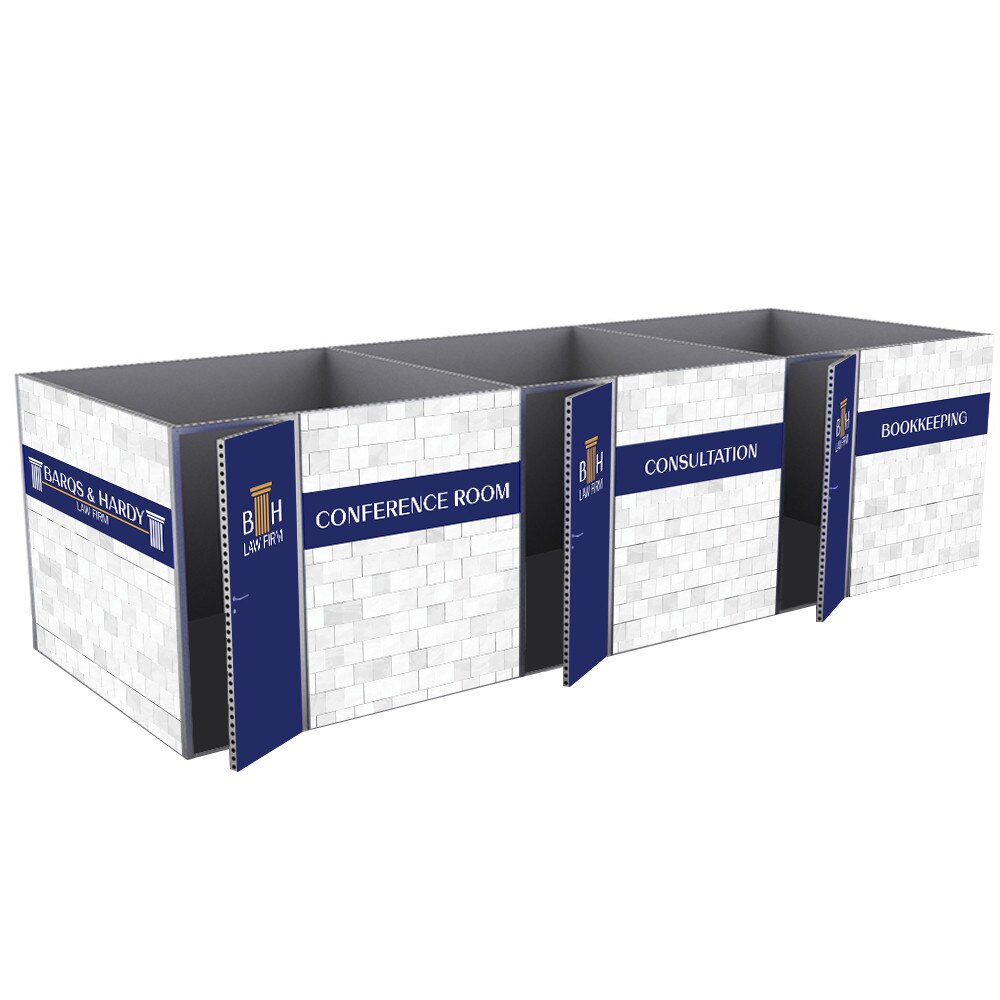

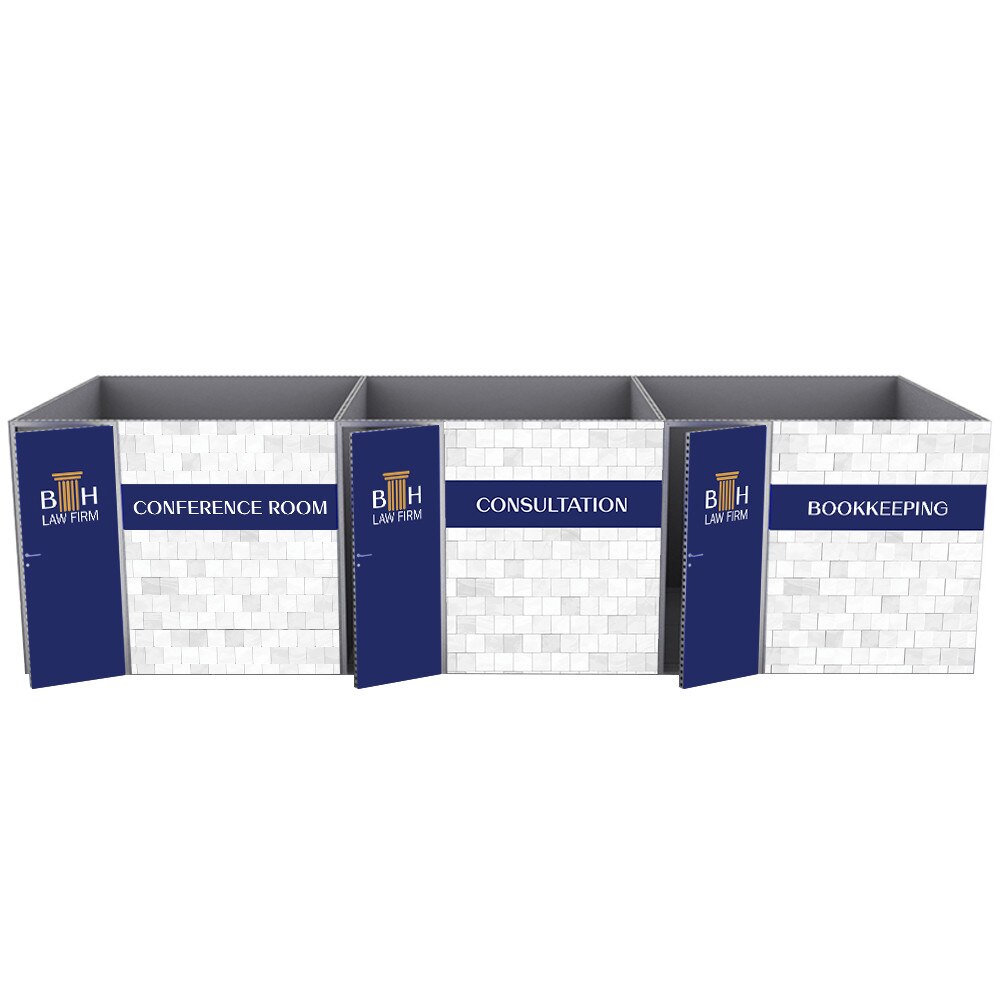

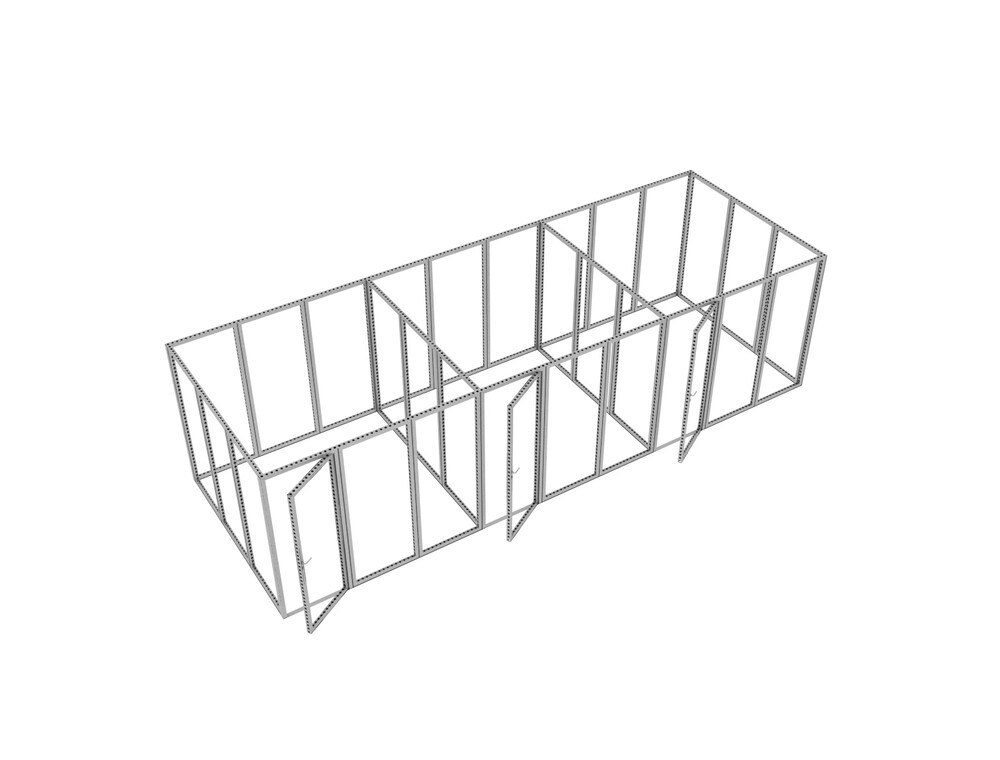

Modco Modular Display 16 is a three-dimensional 30’ x 10’ pre-designed configuration featuring three separate 10′ x 10′ exhibit rooms. Stylish and lively, these rooms are built using tool-free perforated modular aluminum frames. Multiple size frames connect using toolless pin connectors for a quick and easy build. Each rooms features a door w/ lockset and key. Perforations are completely covered for a flawless finish
*Please check your tradeshow guidelines to make sure this configuration conforms to the show regulations. If adjustments to the configuration are required to meet the show requirements please contact us at email@example.com or 512-430-1223 for a custom configuration quote*
- SEG Dye Sub Fabric Graphics w/ integrated blockout
- (27) 992×2418 Frames
- (3) Door w/ lockset
- (4) T Connector
- (2) Door Jamb Pin Connectors
- (10) Door Jamb 180° Barrel Connectors
- (36) 180° Barrel Connectors
- (8) 90° Top/Bottom Connectors
- (8) 90° Middle Connectors
- (18) Clip Connectors
- (120) Pin Connectors
- (120) Frame Protectors
- (4) Cover Profiles
- (2) Heavy Duty Crates
- Graphic Dimensions:
34.25″W x 93.375″H
117.125″W x 95.25″H
78.25″W x 95.25″H
- Display Dimensions: 351″W x 95.25″H x 97.5″D
- Shipping Dimensions: 104″L x 54″W x 44″H (1 crate) or 104″L x 40″W x 4.5″H (1 pallet)
- Shipping Weight: 1931lbs (frames, graphics, and 2 crates)
Use a CMYK color profile - Colors will not look the same when printing an RGB file. A CMYK file will be more accurate to the final printed colors.
Export your files at 300 ppi - Files that are less than 150 ppi will appear blurry when printed.
Note: Images ripped from the web are typically low-resolution, and are not intended for print production
Use the following file formats - PDF (flattened), JPEG, TIFF, or EPS
Add a bleed - All files with full-color backgrounds must be submitted with bleed. A 1/8” bleed is preferred on all files with full-color backgrounds, and all text, logos, and elements must be within 1/8” from the cut line. *Learn more about Bleeds HERE*
We accept multipage PDF files - It is preferred you upload your front and back file separately if possible for double sided prints.
Do not include trim or crop marks unless your file is Vector
Do not upload artwork that is already imposed (multiples on one sheet)
