10 x 10 ft. Modco 19 (Graphic Package)

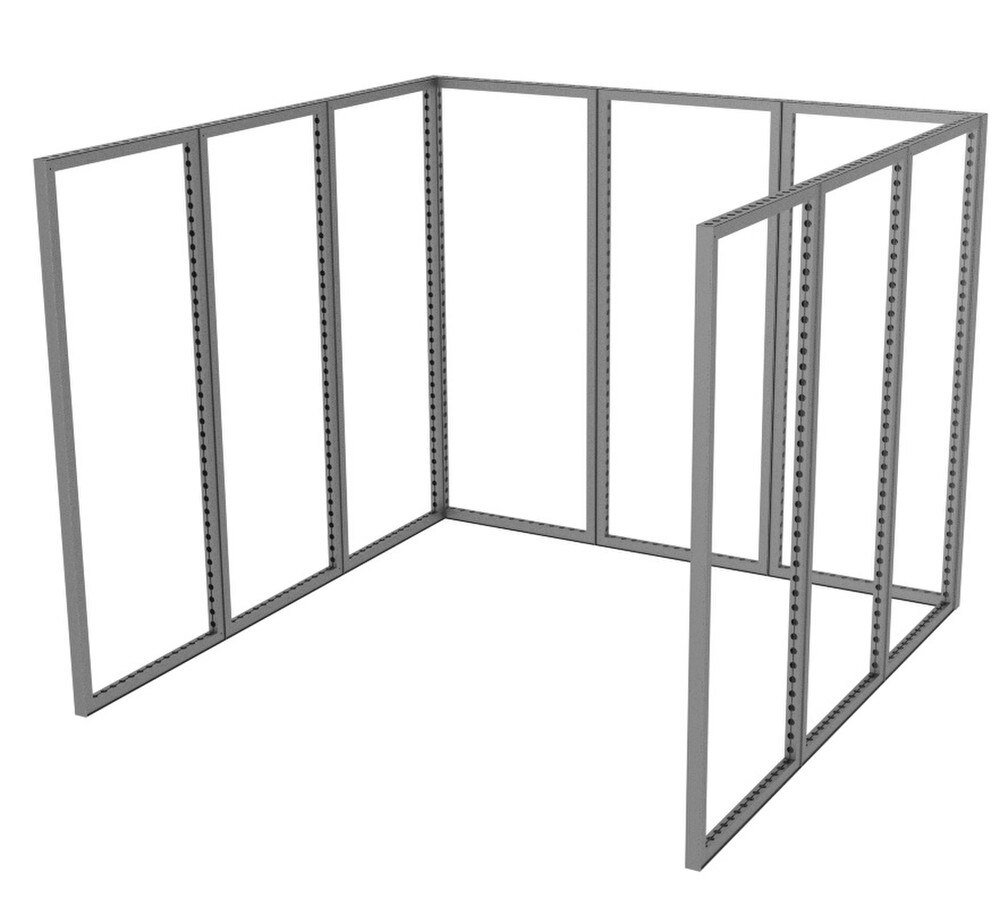

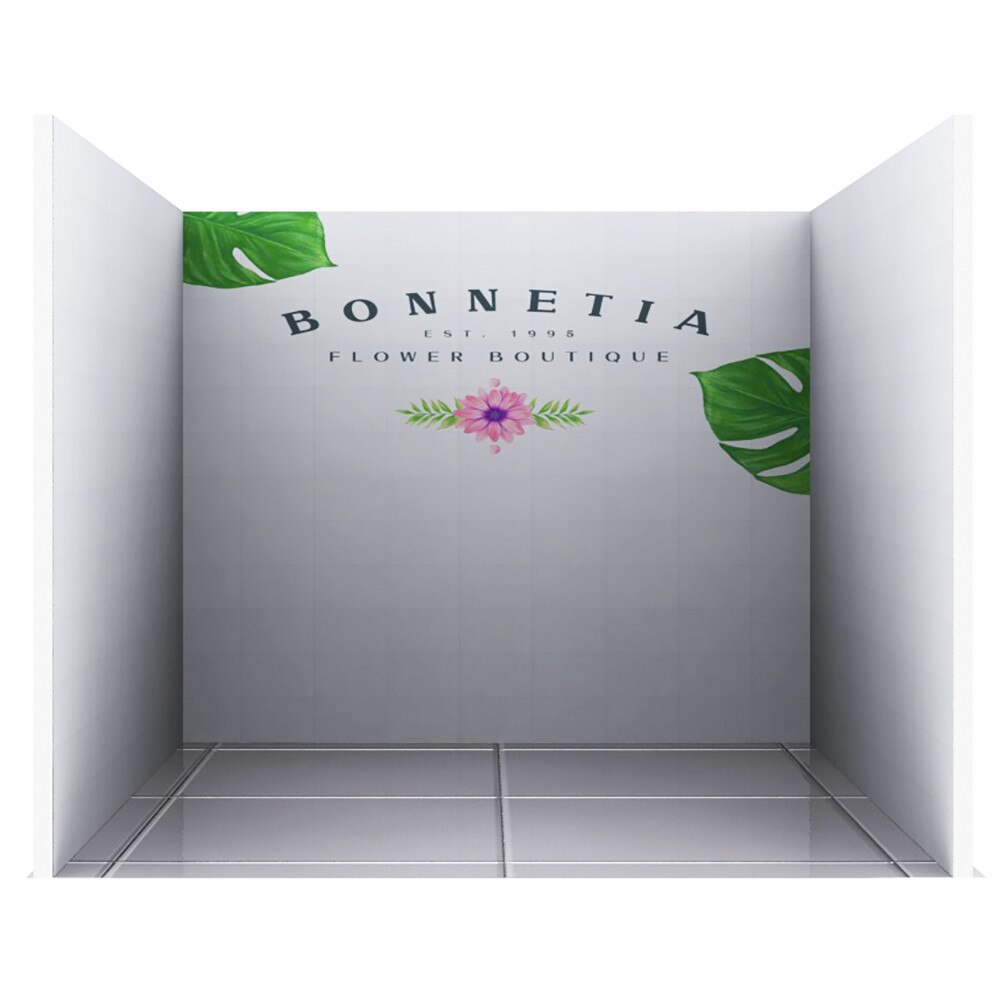

Modco Modular Display 19 is a three-dimensional 10’ x 10’ pre-designed exhibit booth. Stylish and lively, it incorporates a 10’ wide backwall with two 10’ return sidewalls. Tool-free perforated modular aluminum frames make up this booth and connect with toolless pin connectors during assembly. A flawless finish completely covers the perforations.
*Please check your tradeshow guidelines to make sure this configuration conforms to the show regulations. If adjustments to the configuration are required to meet the show requirements please contact us at hello@creationstationprinting.com or 512-430-1223 for a custom configuration quote*
Modco 19 Includes:
- SEG Dye Sub Fabric Graphics w/ integrated blockout
- (9) 992×2418 Frames
- (12) 180° Straight Connectors
- (12) 180° Barrel Connectors
- (4) 90° Top/Bottom Connectors
- (4) 90° Middle Connectors
- (12) Clip Connectors
- (40) Pin Connectors
- (36) Frame Protectors
- (4) Cover Profiles
- (1) Heavy Duty Pallet
Features:
- Graphic Dimensions: 117.125″W x 95.25″H
Display Dimensions: 117″W x 95″H x 117″D
Shipping Dimensions: 104″L x 54″W x 44″H (1 crate) or 104″L x 40″W x 4.5″H (1 pallet)
Shipping Weight: 385lbs (frames, graphics, and pallet)
PRODUCT TEMPLATE
PRODUCT SPECSHEET
SETUP INSTRUCTIONS
Wanting to order in bulk and have these items available in a warehouse storefront? Click here for more info!
Need help setting up your design? Find product TEMPLATES HERE!
Need distribution or fulfillment on this product? Click here to add a distribution list and details to your order!
Use a CMYK color profile - Colors will not look the same when printing an RGB file. A CMYK file will be more accurate to the final printed colors.
Export your files at 300 ppi - Files that are less than 150 ppi will appear blurry when printed.
Note: Images ripped from the web are typically low-resolution, and are not intended for print production
Use the following file formats - PDF (flattened), JPEG, TIFF, or EPS
Add a bleed - All files with full-color backgrounds must be submitted with bleed. A 1/8” bleed is preferred on all files with full-color backgrounds, and all text, logos, and elements must be within 1/8” from the cut line. *Learn more about Bleeds HERE*
We accept multipage PDF files - It is preferred you upload your front and back file separately if possible for double sided prints.
Do not include trim or crop marks unless your file is Vector
Do not upload artwork that is already imposed (multiples on one sheet)
